How-To: Wood DIY Vapor Blast/Dry Blast Cabinet Plans
Outside US INFO - This is a free 6 min video that explains what challenges you may encounter outside the US. Do not enter any payment for this.
Full Plans - Select this during checkout for the full plans.

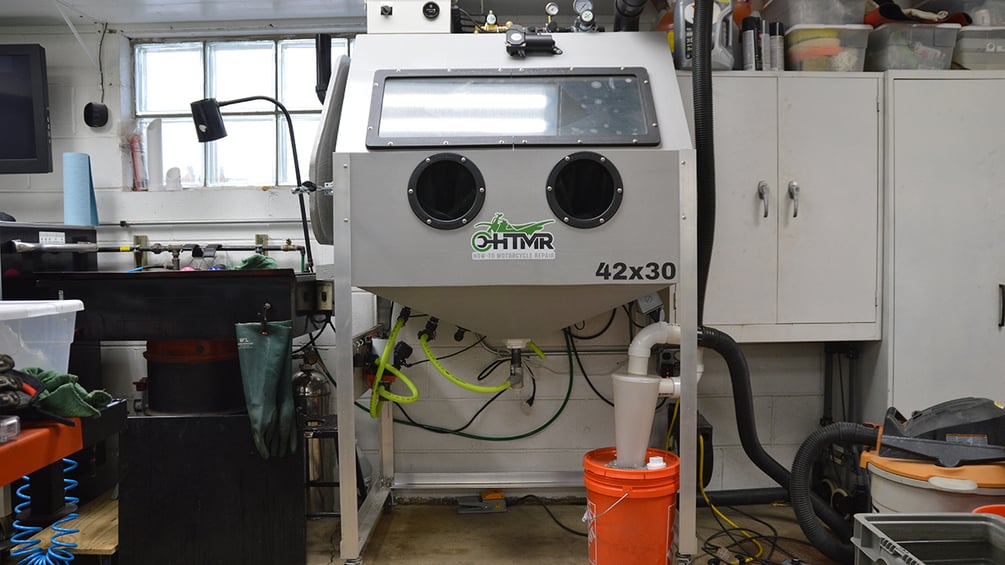

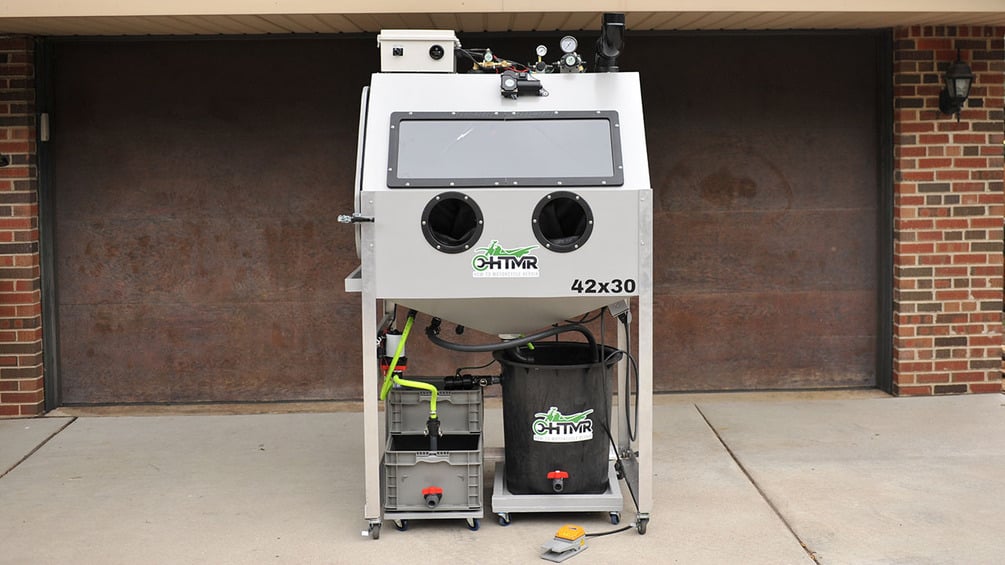

Step by step video tutorial on how to build a 42Wx30D or 60Wx40D vapor blast/dry blast cabinet from 3-5 sheets of plywood and some 2x4's. Yes, it is waterproof and strong!
This cabinet can easily swap between 2 operations in minutes: it can vapor blast and dry blast!
- Cost to build with all features: $3000
- Retail machine cost: $7500 vapor blaster / $1000 dry blast cabinet
- Savings: $4500-5500 (go spend that money on a good air compressor)
Features
- Fully automated
- Closed loop system (no water hookup required)
- Automated overflow valve with programmable time delay
- Precision regulator
- Immersion water heater
- Heavy duty wiper with stainless steel arm
- Wiper has OFF, LOW, HIGH speeds
- Adjustable window rinse spray
- HTMR blast gun (nearly 2x faster than most guns)
- Door drip tray with drain
- Quick change media pit/closed loop bins
- Exterior size (42x30 model): 45"W x 30"D x 77"H
- Interior cabinet size (42x30 model): 40.5"L x 28.5"D x 28"H
- Exterior size (60x40 model): 63"W x 40"D x 85"H
- Interior cabinet size (60x40 model): 58.5"L x 38.5"D x 38.75"H
Dry Blast Details
- Converts from wet to dry in minutes, no tools required
- Metering valve (can control media flow rich or lean)
- Dust management (Dust Deputy cylcone & Shop Vac)
- Optional media shaker for improved media flow
Plan Details
- Over 14 hours of video content
- 21+ PDF documents (prints, schematics, parts lists & templates)
- Part lists have links to buy everything online
- 36+ video chapters covering build
- Videos stream instantly after purchase
- Watch as many times as you like, yours forever to keep
- Email support included
- Access to private Facebook Group for build & blasting support
Watch link provided after purchase
